Kvm Rack Console 1u Dual Rail

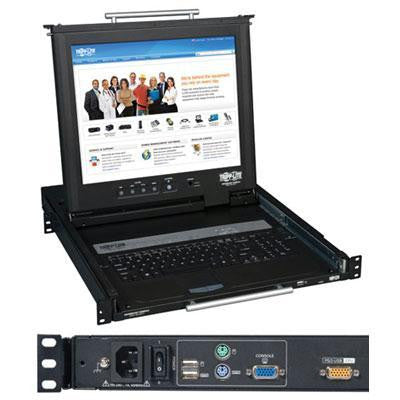

Tripp Lite's B021-02R-17, 1U Dual Rail, Rackmount Console features an integrated 17" LCD panel, full 88-key keyboard, and touch pad, all in a 1U rackmountable housing. This unit allows the screen to remain open, while the keyboard portion is retracted into the rack. The included KVM cable kit allows for connection to a PS/2 or USB computer or KVM. Tripp Lite warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. Key Features Integrated 17-in. LCD display, 99-key keyboard and touchpad in a 1U rackmountable housing. USB port on front of unit for optional USB Mouse attachment Dual rail configuration allows for the keyboard and LCD panel to slide independently of each other, which provides the ability to monitor computer activity while stowing keyboard module out of the way. Can be mounted in racks with a depth ranging from 22-in. to 34-in. Includes a USB/PS2 Combo KVM Cable Kit, allowing you to connect to a computer or KVM with either USB or PS/2 connectors. Compatible with all operating systems, and most KVMs with a VGA and USB or PS/2 ports. Back panel of the unit includes external VGA, PS/2 (x2) and USB (x2) ports for connecting an external console. Supports video resolutions up to 1280 x 1024 @ 75Hz. DDC, DDC2 and DDC2B emulation allows the video settings of the connected computer to be automatically adjusted for optimal display on the console monitor. Firmware upgradeable via the included firmware upgrade cable (RJ11 to DB9). Features keyboard commands for SUN keyboard emulation. Typical Applications Use where rack space is at a premium, and where a Server/KVM display is needed. System Requirements Connected Computer/KVMA VGA (HD15) input A USB A Female port, or two PS/2 keyboard/mouse ports External Console A monitor with a VGA (HD15) input USB or PS/2 Keyboard and Mouse Package Includes B021-02R-17 17-in. USB/PS2 Dual Rail Console Rackmount Hardware USB/PS2 Console Cable Kit RJ11 to DB9 Firmware Upgrade Cable C13 to 5-15P Power Cord Grounding Wire Owner's Manual CD
